/// What is a TVS supercharger and why do you want one?

The Twin Vortices Series (TVS) is the 6th generation of Eaton Roots type supercharger. It features four lobes per rotor and specially designed inlet and outlet ports. TVS reaches pressure ratios as high as 2.5 with maximum thermodynamic efficiency no less than 75%. The Eaton TVS rotor group, is the same supercharger technology used in factory-supercharged GM, Audi, Jaguar, and Ford vehicles, and is the only supercharger technology that stands up to OEM durability and reliability tests.

The CT k-series supercharger kits use the older less efficient 3 lobe or 5th generation rotors. Additionally, the 1320 TVS displaces 1.32 liters vs. the CT’s M62 1.0L. This additional displacement allows more air to flow at the same blower speed when using the 1320 TVS.

The 1320 TVS is perfectly sized to the high flowing Honda K-series engines. This upgrade is for owners that want more from their supercharger kits, while still retaining the reliability and quick throttle response that the CT kits are known for.

These kits are only offered aftercooled or charge air cooled (CAC).


/// IMT 1320 TVS Upgrade for current CAC or aftercooled owners


Bolt on in an afternoon - No fabrication required


    The 1320 TVS is a simple bolt on utilizing our innovative patent pending mounting system with integrated custom super high density core. .

    Owners can reuse their IMT heat exchanger, pump and reservoir.

/// IMT 1320 TVS upgrade for owners without a CAC or Aftercooler


Build yourself a full IMT Charge Air Cooled kit it to team up with the 1320 TVS


    The 1320 is a simple bolt on utilizing our innovative patent pending mounting system with integrated custom super high density core.

    Owners can purchase separately all the required IMT parts to create a full bolt on charge air cooler kit.


/// Both Kits Include

1. 1320TVS Supercharger – Powder coated black.

2. Our innovative patent pending supercharger mounting system.

3. A custom super high density charge air cooling core that has a 15% greater face area and over 30% greater cooling surface then our M62 core.

4. A 1320 TVS specific CNC machined Big Bore billet inlet that contains a 77mm bore.

5. Your choice of throttle body adapters. J37 – OEM Si – Skunk2 . (J37 highly recommended)

6. Hose and hose clamps.

7. All CNC machined aluminum parts are anodized clear.

8. Your choice of blower pulleys 4.0-2.8”

9. Installation instruction manual.

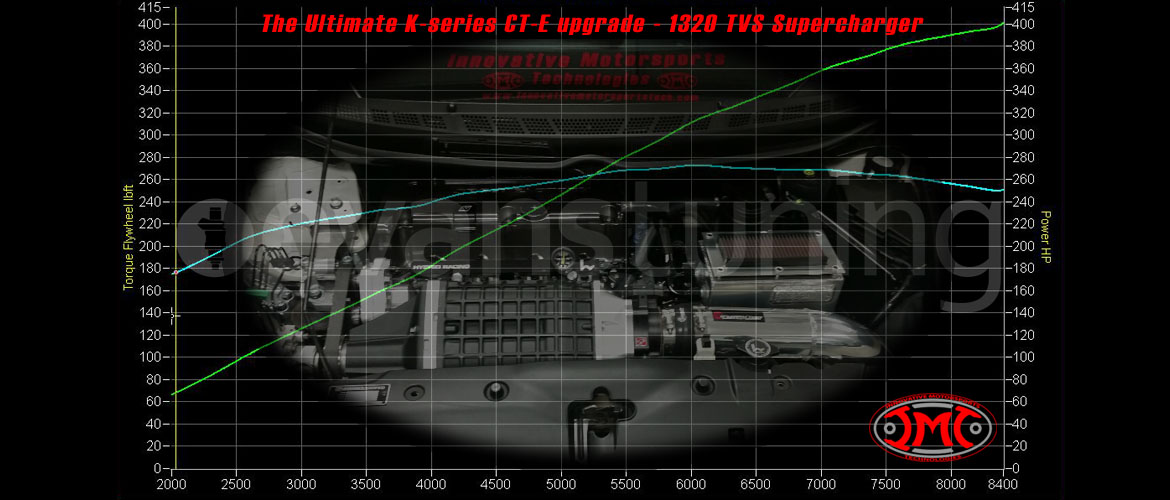

/// Dyno Graphs & Testing


IMT 1320 TVS Supercharger upgrade on stock block and head k20 on pump gas @ 14.5psi - no ice - no meth - no e85 - no race gas
Horse Power @ 14.5psi Torque @ 14.5psi
IMT 1320 TVS Supercharger upgrade on stock block and head k20 on pump gas @ 14.5psi - no ice - no meth - no e85 - no race gas
